RELIGRID
Electrical Surge Protection Devices

Reliable Protection for Your Electrical Systems

About Religrid

What Religrid Brings to Your System

We are delighted to introduce the RELIGRID series of Surge Protection Devices (SPDs), designed to offer robust and reliable protection for your electrical and solar power systems. The RELIGRID SPDs comply with international standards such as IEC 61643-11 and has TUV certification, ensuring trusted quality and performance. Its suitable for  both AC and DC applications.

Key Features

The Features That Matter

  • Reliable thermo disconnect device for enhanced safety and durability.
  • Integrated arc extinguisher for preventing electrical arcs and ensuring safer operation under fault conditions.
  • High discharge capacity capable of handling large surge currents (up to 40 kA).
  • Visual and remote status indication for real-time monitoring of SPD condition.
  • Compact and smaller size design for easy DIN rail mounting and space-saving installation.
  • Multifunctional terminals allowing connection of conductors and busbars with flexibility.
  • Operates reliably across wide temperature (-40 to 85°C) and humidity ranges.
  • Robust thermoplastic enclosure rated IP20 with UL94 V-0 flame retardant material.
  • Quick response time (25 ns) to surges for maximum protection.
  • Multiple modes of protection covering line to neutral, neutral to earth, and line to earth surges.

Products

RELIGRID SPD's

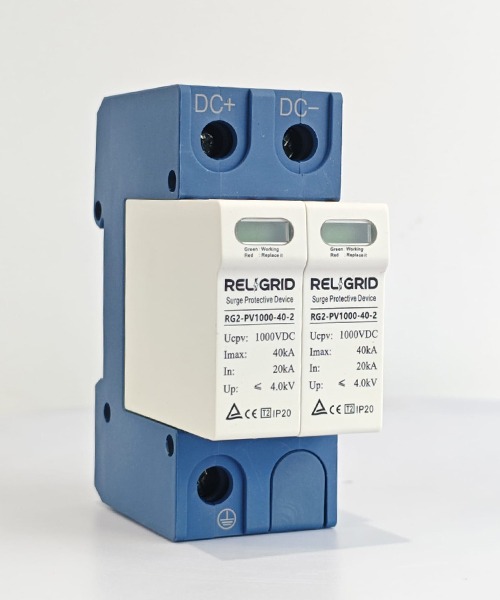

Model No: RG2-PV1000-40-2

Application Type: Solar DC System
Max Continuous Voltage (Uc): 1000 V DC
Nominal Discharge Current: 20 kA
Max Discharge Current:40 kA
Voltage Protection Level (Up):4.0 kV

Download Data Sheet

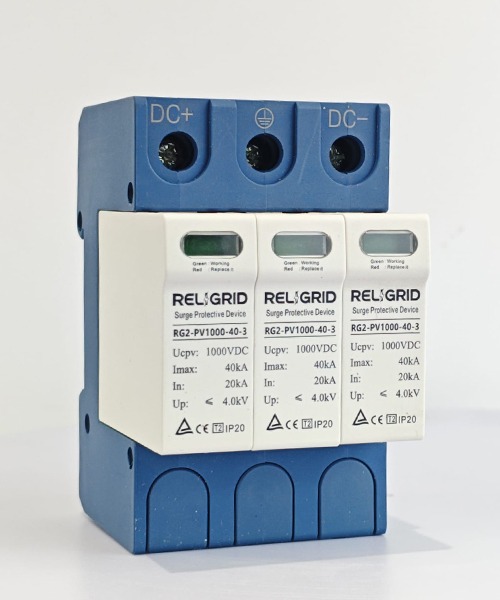

Model No: RG2-PV1000-40-3

Application Type: Solar DC System
Max Continuous Voltage (Uc): 1000 V DC
Nominal Discharge Current: 20 kA
Max Discharge Current:40 kA
Voltage Protection Level (Up):4.0 kV

Download Data Sheet

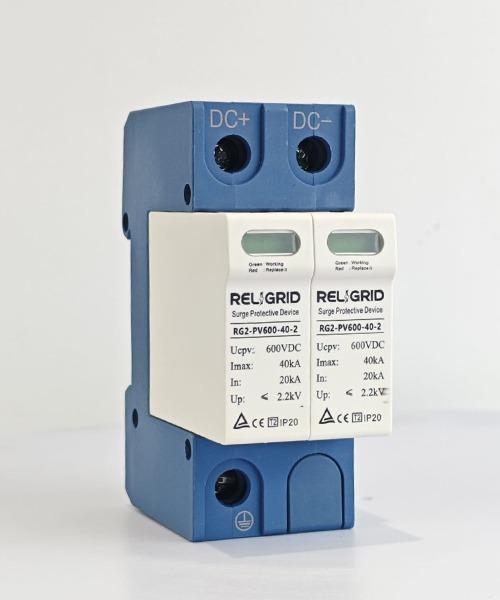

Model No: RG2-PV600-40-2

Application Type: Solar DC System
Max Continuous Voltage (Uc): 600 V DC
Nominal Discharge Current: 20 kA
Max Discharge Current:40 kA
Voltage Protection Level (Up):2.2 kV

Download Data Sheet

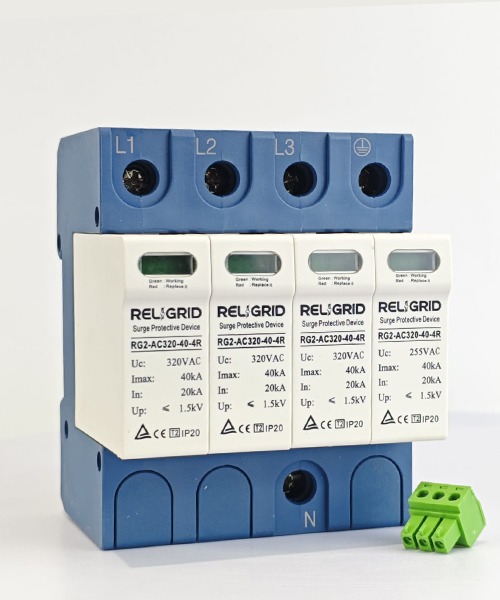

Model No: RG2-AC320V-40-4(R)

Application Type: AC Power System
Max Continuous Voltage (Uc): 320 VAC L-N
Nominal Discharge Current: 20 kA
Max Discharge Current:40 kA
Voltage Protection Level (Up):1.5 kV

Download Data Sheet

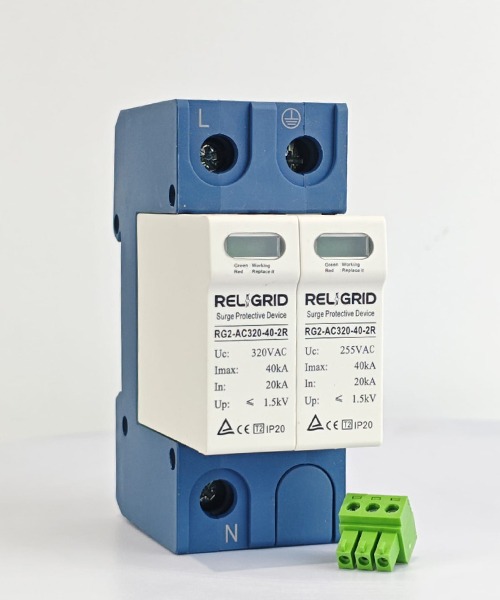

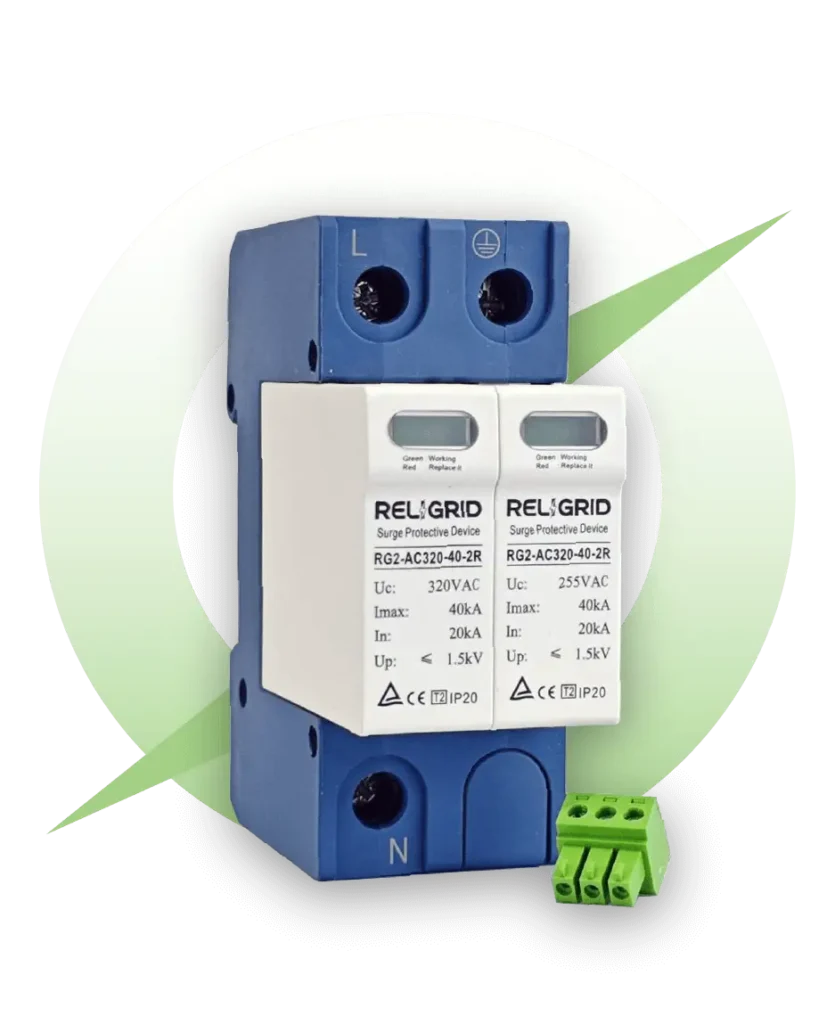

Model No: RG2-AC320V-40-2(R)

Application Type: AC Power System
Max Continuous Voltage (Uc): 320 VAC L-N
Nominal Discharge Current: 20 kA
Max Discharge Current:40 kA
Voltage Protection Level (Up):1.5 kV

Download Data Sheet

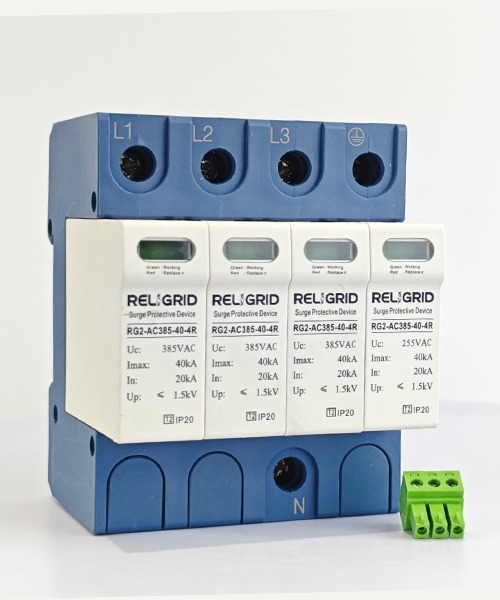

Model no. RG-AC385V-40-4R

Model no. RG-AC385V-40-4(R)

Application Type: AC Power System
Max Continuous Voltage (Uc): 385VAC (L-N), 255Vac (N-PE)
Nominal Discharge Current: 20 kA
Max Discharge Current:40 kA
Voltage Protection Level (Up):1.5 kV

Download Data Sheet

Products

RELIGRID SPD

Model No: RG2-PV1000-40-2

Application Type: Solar DC System
Max Continuous Voltage (Uc): 1000 V DC
Nominal Discharge Current: 20 kA
Max Discharge Current:40 kA
Voltage Protection Level (Up):4.0 kV

Download Data Sheet

Model No: RG2-PV1000-40-3

Application Type: Solar DC System
Max Continuous Voltage (Uc): 1000 V DC
Nominal Discharge Current: 20 kA
Max Discharge Current:40 kA
Voltage Protection Level (Up):4.0 kV

Download Data Sheet

Model No: RG2-PV600-40-2

Application Type: Solar DC System
Max Continuous Voltage (Uc): 600 V DC
Nominal Discharge Current: 20 kA
Max Discharge Current:40 kA
Voltage Protection Level (Up):2.2 kV

Download Data Sheet

Model No: RG2-AC320V-40-4(R)

Application Type: AC Power System
Max Continuous Voltage (Uc): 320 VAC L-N
Nominal Discharge Current: 20 kA
Max Discharge Current:40 kA
Voltage Protection Level (Up):1.5 kV

Download Data Sheet

Model No: RG2-AC320V-40-2(R)

Application Type: AC Power System
Max Continuous Voltage (Uc): 320 VAC L-N
Nominal Discharge Current: 20 kA
Max Discharge Current:40 kA
Voltage Protection Level (Up):1.5 kV

Download Data Sheet
Model no. RG-AC385V-40-4R

Model no. RG-AC385V-40-4(R)

Application Type: AC Power System
Max Continuous Voltage (Uc): 385VAC (L-N), 255Vac (N-PE)
Nominal Discharge Current: 20 kA
Max Discharge Current:40 kA
Voltage Protection Level (Up):1.5 kV

Download Data Sheet

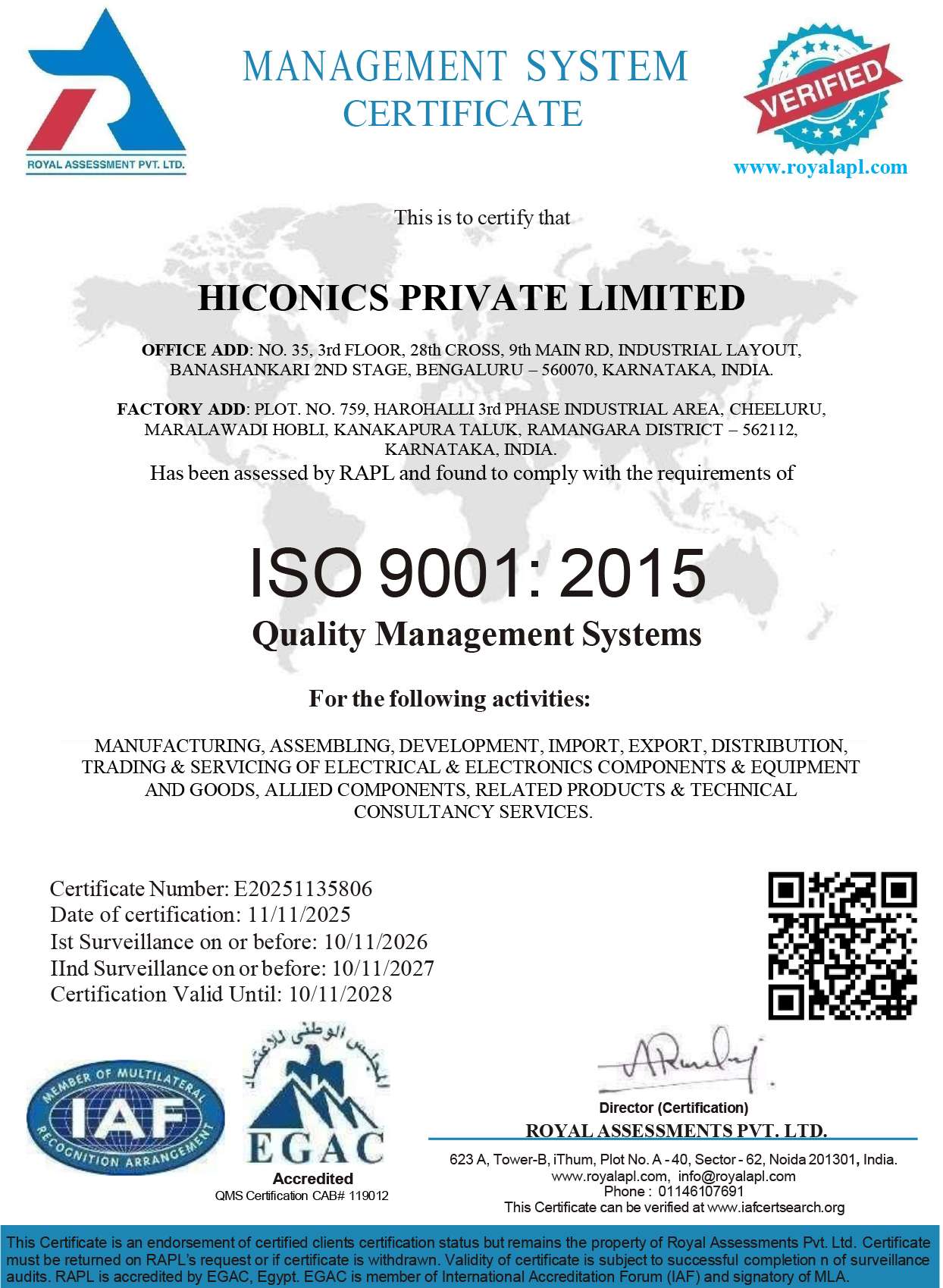

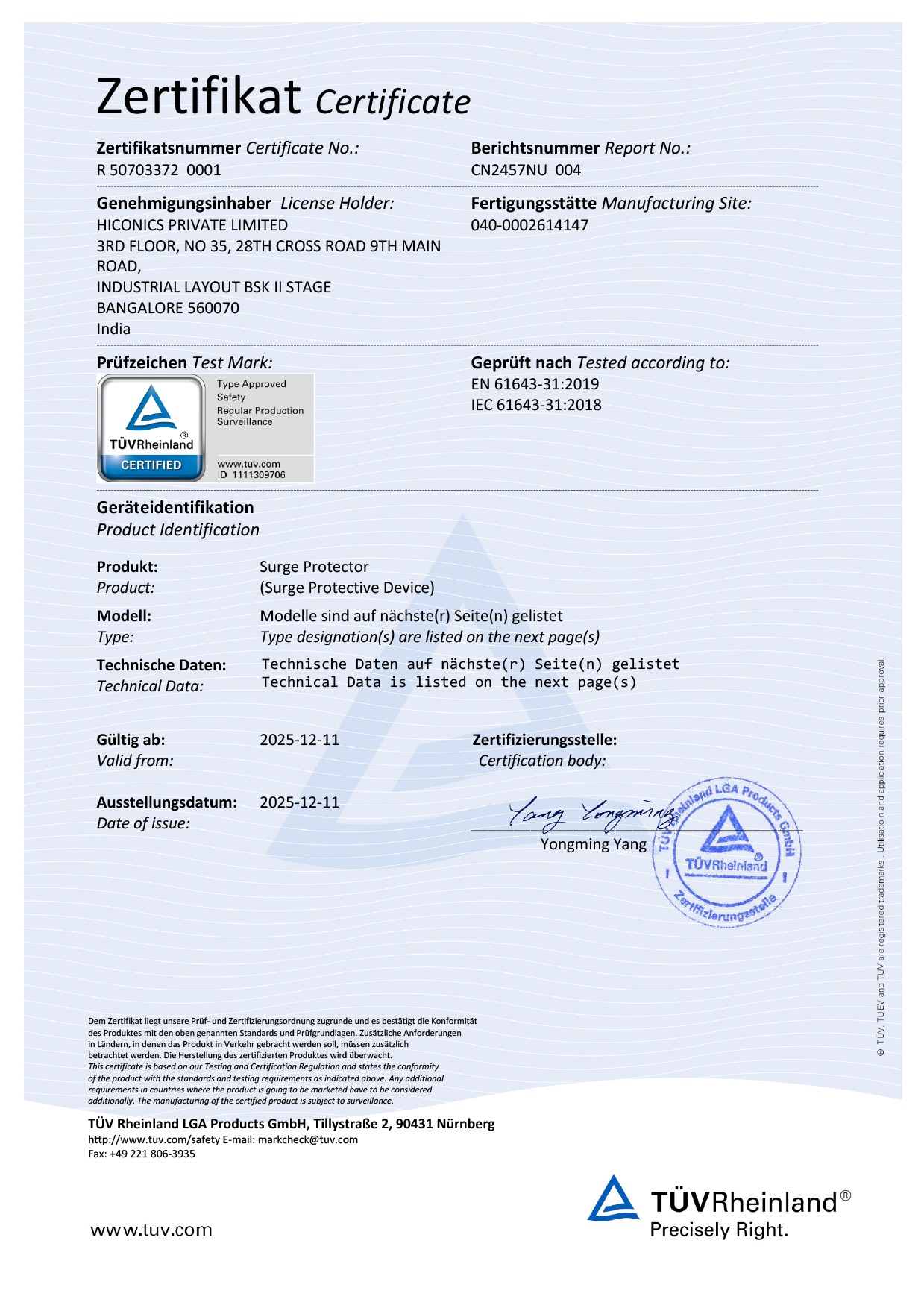

Quality

Globally Recognised Certifications

Faq's

Product information made simple

What is the primary application of the Type 2 RELIGRID SPD?

The Type 2 RELIGRID SPD is used to protect:

  • Commercial buildings
  • Industrial panels
  • Residential complexes
  • Data centers
  • Telecom rooms
  • Solar AC & DC distribution boards

from induced lightning surges and internal switching transients, ensuring high system availability and equipment safety.

Type 2 RELIGRID SPDs comply with and are tested according to:

  • IEC 61643-11
  • IS/IEC 61643-11
  • TUV Certification (Independent Third-Party Tested) ✅

TUV certification confirms:

  • Electrical safety
  • Performance reliability
  • Thermal and short-circuit endurance
  • Compliance with international surge protection standards

This makes RELIGRID SPDs suitable for critical, regulated, and audited projects.

TUV certification is a globally recognized assurance that the RELIGRID SPD has been:

  • Independently tested
  • Verified for surge current performance
  • Proven safe under fault and end-of-life conditions

This is especially important for:

  • EPC projects
  • Government & utility tenders
  • Industrial & data center installations
  • Consultant-approved specifications

RELIGRID Type 2 SPD uses:

  • High-energy Metal Oxide Varistor (MOV) technology
  • Integrated thermal disconnection mechanism
  • Fail-safe and short-circuit protected design

This technology is TUV tested and certified, ensuring controlled failure without fire or explosion risk.

Type 2 RELIGRID SPD supports:

  • Single-phase (1P+N)
  • Three-phase systems:
    • TT
    • TN-S
    • TN-C-S
    • IT (with appropriate configuration)

System compatibility is verified during type testing and TUV certification.

Yes.
RELIGRID SPDs include a mechanical status indicator:

  • 🟢 Green – SPD healthy and operational
  • 🔴 Red – SPD has reached end of life

This feature is part of TÜV-evaluated safety compliance.

Yes, selected RELIGRID models offer:

  • Potential-free remote signaling contacts
  • Alarm output for BMS / SCADA / PLC integration

Ensures predictive maintenance and real-time monitoring.

Yes.
RELIGRID Type 2 SPD features:

  • Pluggable cartridge design
  • DIN-rail mounting
  • No rewiring during replacement

Pluggable safety and replacement mechanism is TÜV tested for operational reliability.

  • MOV degrades after multiple surge events
  • Thermal disconnector safely isolates the SPD
  • Indicator changes from green to red
  • No fire, no short-circuit, no system damage

End-of-life safety behavior is verified under TÜV certification.

Typical response time is < 25 nanoseconds, ensuring fast clamping of overvoltage’s validated during IEC and TÜV testing.

RELIGRID SPDs offer:

  • ✅ TUV Certified – Independent third-party validation
  • IEC & IS standard compliance
  • Robust MOV with thermal disconnection
  • Pluggable, maintenance-friendly design
  • Clear visual & optional remote indication
  • Optimized for Indian grid and lightning conditions
  • Excellent cost-to-performance ratio

Upgrade Your Safety with Religrid SPDs

We believe RELIGRID SPDs will be a valuable addition to your electrical protection solutions, ensuring enhanced safety and longevity of your installations.

Feel free to reach out to us for any queries.
